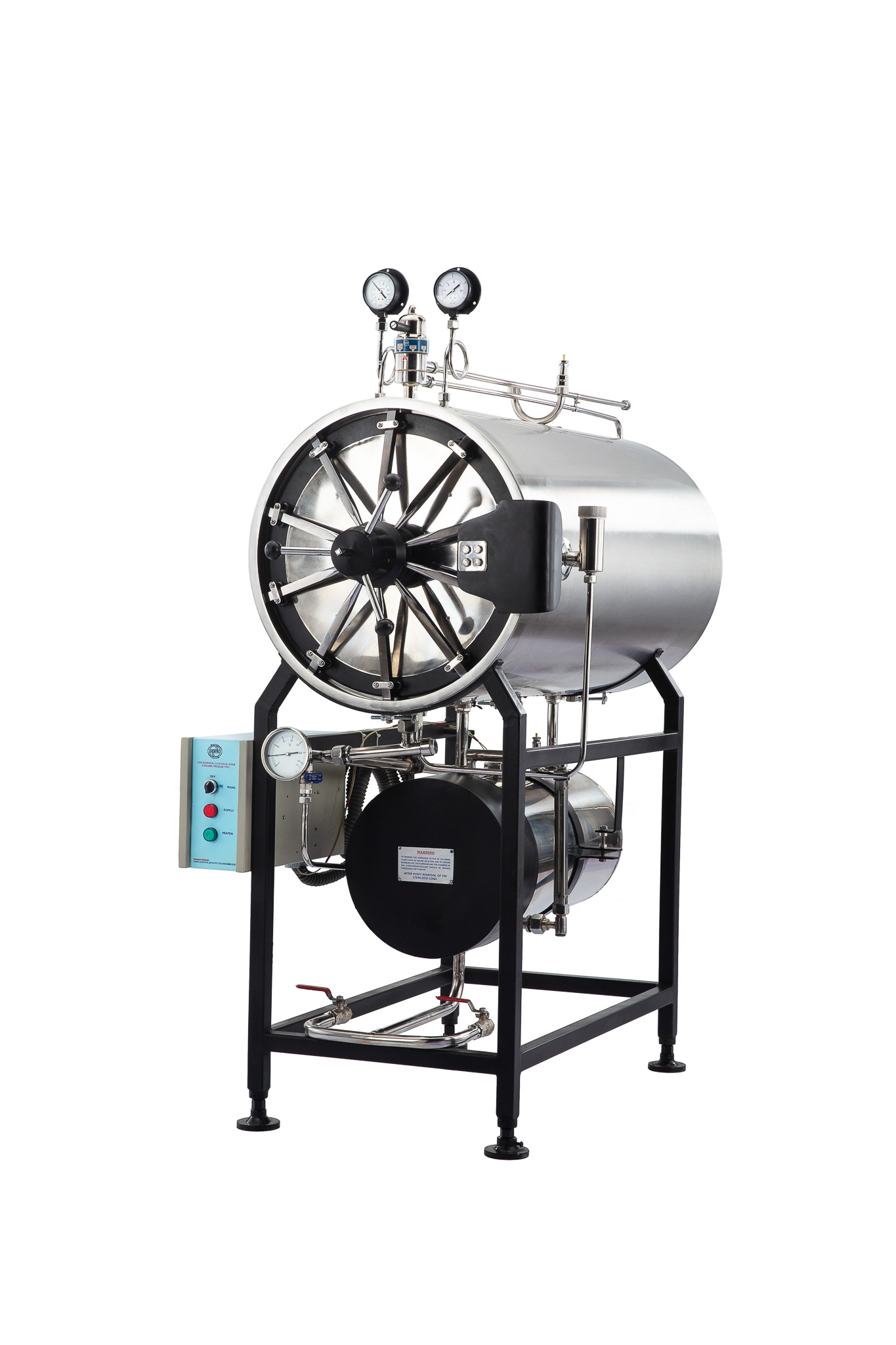

STERI YSU-405 Bronze Horizontal Cylindrical High Pressure Steam Sterilizer

For maximum reliability and efficiency in a large clinic and hospital setting: Our cylindrical steam sterilizers (75 to 350 L) facilitate the smooth running of treatments in CSSDs, hospitals, outpatient clinics, and surgical clinics.

Quick inquiry

Feature
Technical Specs

STERI YSU-405 Bronze Horizontal Cylindrical High Pressure Steam Sterilizer confirming to IS: 3829 part I has cylindrical shaped chamber mounted horizontally on a sturdy stand. The advantage of easy manufacturing of rounded chambers and uniform heat distribution provides an ideal combination of affordability and high-quality sterilization.

Safe and Reliable

Design Feature

Low total cost of ownership

Complete Stainless-Steel Construction

PLUG and PLAY

Accessories

	Size(mm)	Size(mm)	Size(mm)	Size(mm)	Size(mm)	Size(mm)
Chamber Size	400x600	400x1100	500x900	500x1200	600x1100	750x1200
Outer Dimension	800x1800x1100	800x1800x1600	900x1880x1450	900x1880x1750	1020x2000x1660	1180x2100x1850
Volume litre	75	138	176	232	310	530
Operation Mode	Manual	Manual	Manual	Manual	Manual	Manual
Sterilization Temp. Range	99 to 121ºC	99 to 121ºC	99 to 121ºC	99 to 121ºC	99 to 121ºC	99 to 121ºC
Sterilization Pressure Range	Max. 1.2 kg/cm²	Max. 1.2 kg/cm²	Max. 1.2 kg/cm²	Max. 1.2 kg/cm²	Max. 1.2 kg/cm²	Max. 1.2 kg/cm²
Standard Lid lock Mechanism	Radial Lock	Radial Lock	Radial Lock	Radial Lock	Radial Lock	Radial Lock
Heater Load	6 KW	9 KW	9 KW	9 KW	9 KW	9 KW
Stainless Steel Grade	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)
Voltage & Frequency	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase
