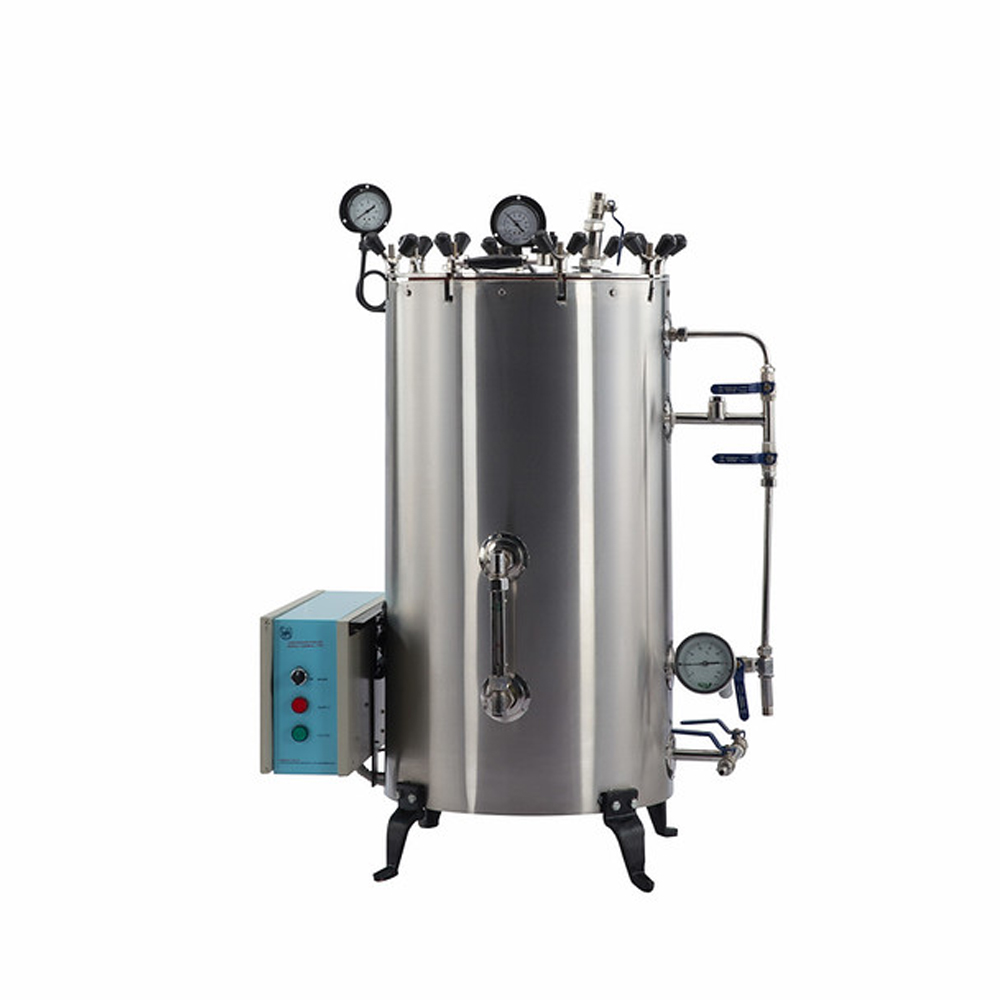

STERI YSU-404 Gold Automatic Vertical High Pressure Steam Sterilizer

YSU-404 Gold Available in chamber sizes of 35, 50, 75 & 103 liters. vertical sterilizer (Gold Series) conforming to IS: 3829 Part III is an economical automatic steam sterilizer. Its microprocessor maintains the temperature and pressure and on completion performs automatic exhaust.

Quick inquiry

Feature
Sterilization Programs
Technical Specs
Accessories

STERI YSU-404 Gold Automatic Vertical Cylindrical High Pressure Steam Sterilizer confirming to IS: 3829 part III is our budget friendly model. Specially designed for small spaces and can manage all your sterilization needs while having a small footprint.

Safe and Reliable

Design Feature

Low total cost of ownership

Complete Stainless-Steel Construction

PLUG and PLAY

Accessories

Benefits

1 Year warranty
Provide Good Service
Free Installation
Free On Site Training

The sterilizer is equipped one pre-programmed customer Flexible cycle - 121°C / 134°C

Size(mm) Size(mm) Size(mm) Size(mm) Size(mm) Size(mm)
Chamber Size 300x500 400x600 300x500 400x600 350x550 450x650
Outer Dimension 800x1800x1100 800x1800x1600 900x1880x1450 900x1880x1750 1020x2000x1660 1180x2100x1850
Volume litre 35 75 35 75 52 103
Operation Mode Automatic Automatic Automatic Automatic Automatic Automatic
Sterilization Temp. Range 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC
Sterilization Pressure Range Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm²
Standard Lid lock Mechanism Wing Nut Lock Wing Nut Lock Radial Lock Radial Lock Radial Lock Radial Lock
Heater Load 3 KW 6 KW 3 KW 6 KW 3 KW 6 KW
Stainless Steel Grade SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI)
Voltage & Frequency 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase

Perforated Cylindrical Basket

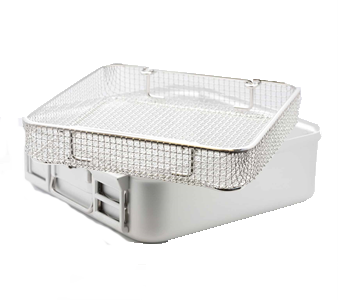

Sterilization Basket

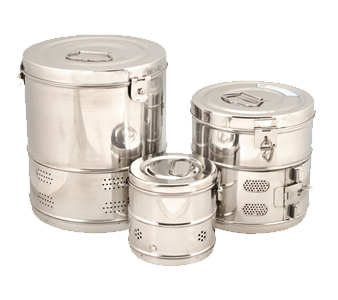

Dressing Drum

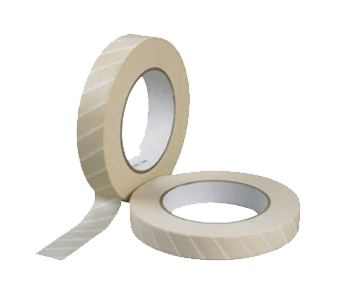

Sterilization Indicator Tape
