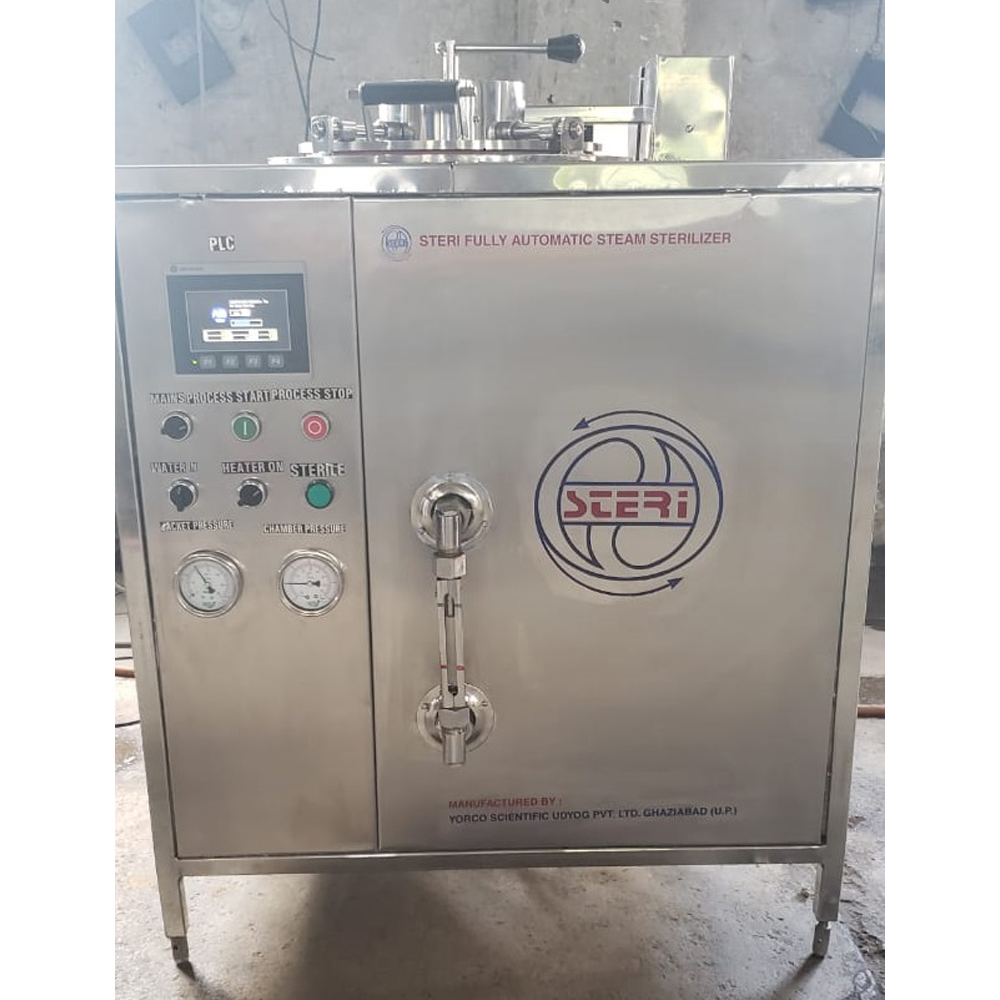

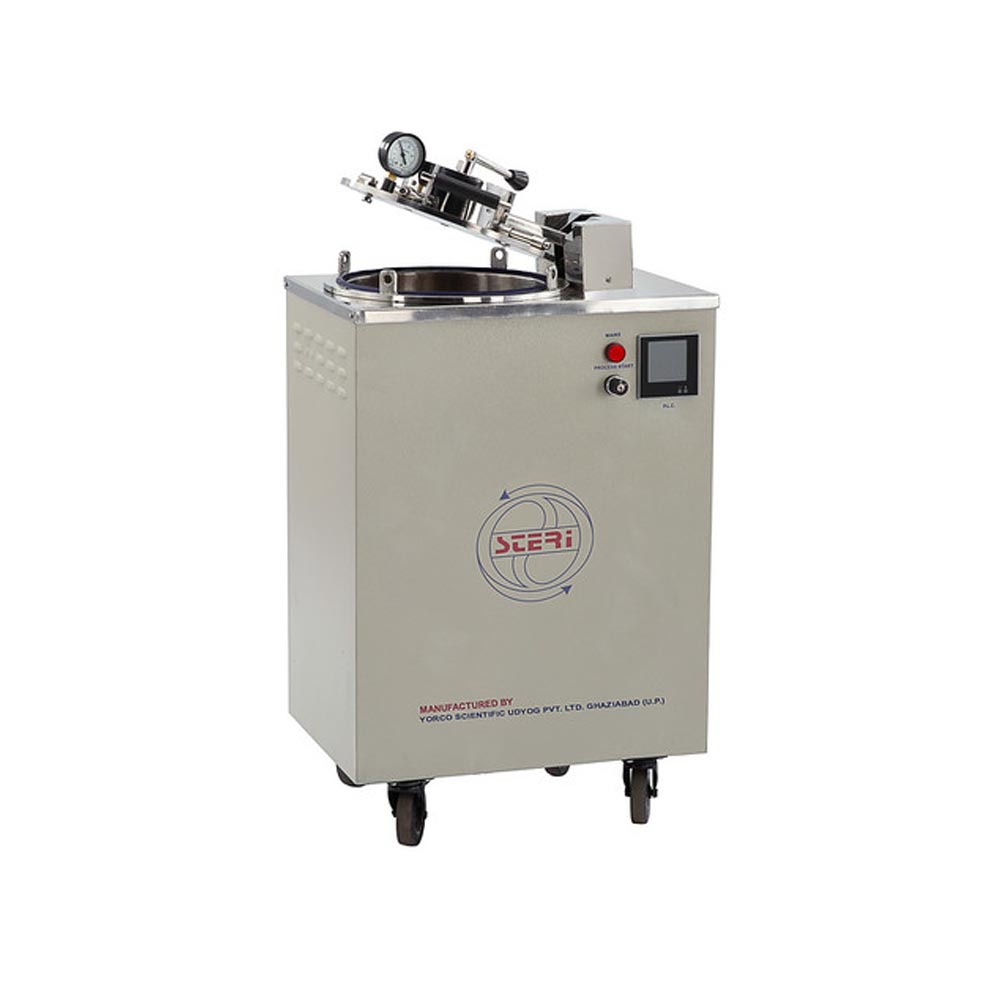

STERI YSU-404 Platinum Fully Automatic Vertical High Pressure Steam Sterilizer

YSU-404 Platinum Available in chamber sizes of 35, 50, 75 & 103 liters. Vertical sterilizer conforming to IS: 3829 Part III is stunning all in one powerful feature loaded sterilizer featuring 4.7” high resolution colored touch screen display with finest Allen Bradley Microprocessor.

Quick inquiry

Feature
Sterilization Programs
Technical Specs
Accessories

STERI YSU-404 Platinum Fully Automatic Vertical Cylindrical High Pressure Steam Sterilizer confirming to IS: 3829 part III is our budget friendly model. Specially designed for small spaces and can manage all your sterilization needs while having a small footprint.

Safe and Reliable

Design Feature

Low total cost of ownership

Complete Stainless-Steel Construction

PLUG and PLAY

Accessories

An optimized program for every load

Autoclave comes with Allen Bradley PLC with 4.7: touch screen having 6 factory set cycle programs that cover the processing needs of most laboratories and research centers

Fabric Cycle- Cycle Description
Instrument Cycle- Cycle Description
Variable Cycle C

Size(mm) Size(mm) Size(mm) Size(mm) Size(mm) Size(mm)
Chamber Size 300x500 400x600 300x500 400x600 350x550 450x650
Outer Dimension 800x1800x1100 800x1800x1600 900x1880x1450 900x1880x1750 1020x2000x1660 1180x2100x1850
Volume litre 35 75 35 75 52 103
Operation Mode Automatic Automatic Automatic Automatic Automatic Automatic
Sterilization Temp. Range 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC
Sterilization Pressure Range Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm²
Standard Lid lock Mechanism Wing Nut Lock Wing Nut Lock Radial Lock Radial Lock Radial Lock Radial Lock
Heater Load 3 KW 6 KW 3 KW 6 KW 3 KW 6 KW
Stainless Steel Grade SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI)
Voltage & Frequency 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase

	Size(mm)	Size(mm)	Size(mm)	Size(mm)	Size(mm)	Size(mm)
Chamber Size	300x500	400x600	300x500	400x600	350x550	450x650
Outer Dimension	800x1800x1100	800x1800x1600	900x1880x1450	900x1880x1750	1020x2000x1660	1180x2100x1850
Volume litre	35	75	35	75	52	103
Operation Mode	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic
Sterilization Temp. Range	121ºC to 134ºC	121ºC to 134ºC	121ºC to 134ºC	121ºC to 134ºC	121ºC to 134ºC	121ºC to 134ºC
Sterilization Pressure Range	Max. 2.1 kg/cm²	Max. 2.1 kg/cm²	Max. 2.1 kg/cm²	Max. 2.1 kg/cm²	Max. 2.1 kg/cm²	Max. 2.1 kg/cm²
Standard Lid lock Mechanism	Wing Nut Lock	Wing Nut Lock	Radial Lock	Radial Lock	Radial Lock	Radial Lock
Heater Load	3 KW	6 KW	3 KW	6 KW	3 KW	6 KW
Stainless Steel Grade	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)	SS304 (Also available in SS316 SS316L/316TI)
Voltage & Frequency	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase	220 V, 50 HZ Three phase

Perforated Cylindrical Basket

Sterilization Basket

Dressing Drum

Sterilization Indicator Tape
