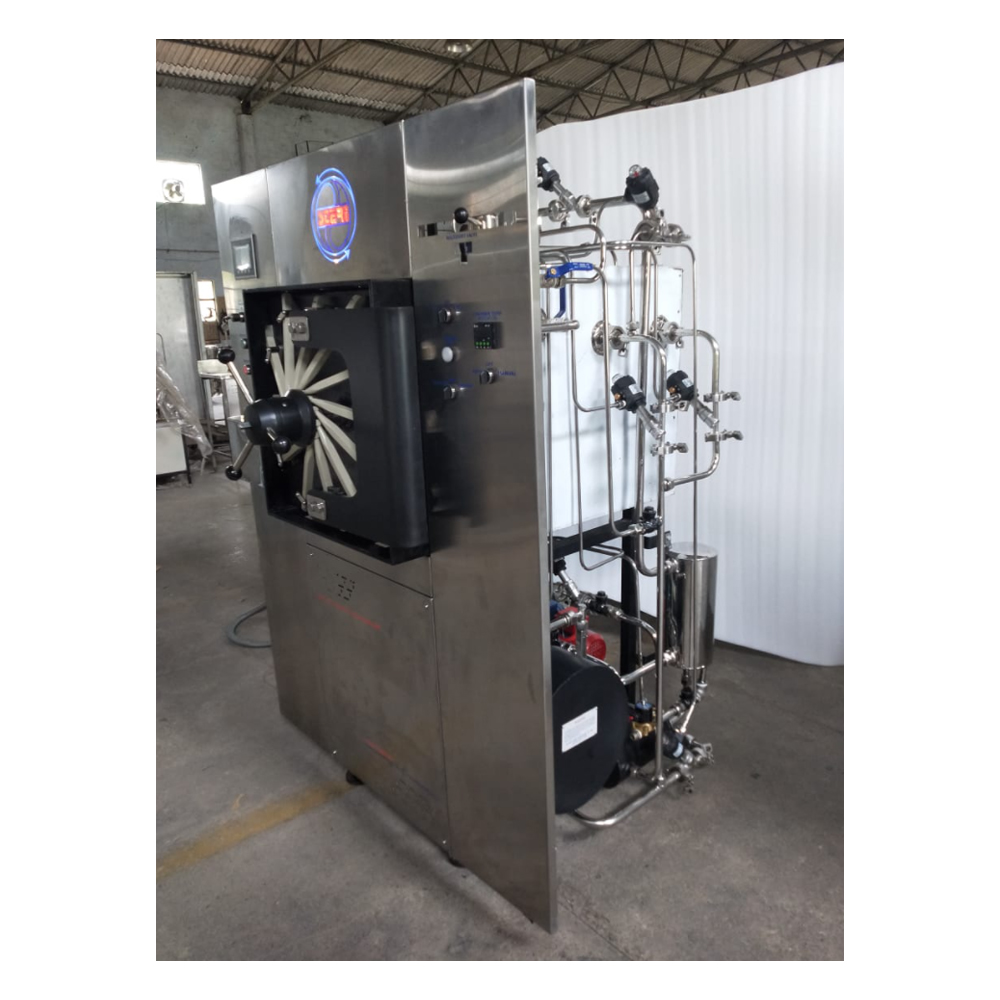

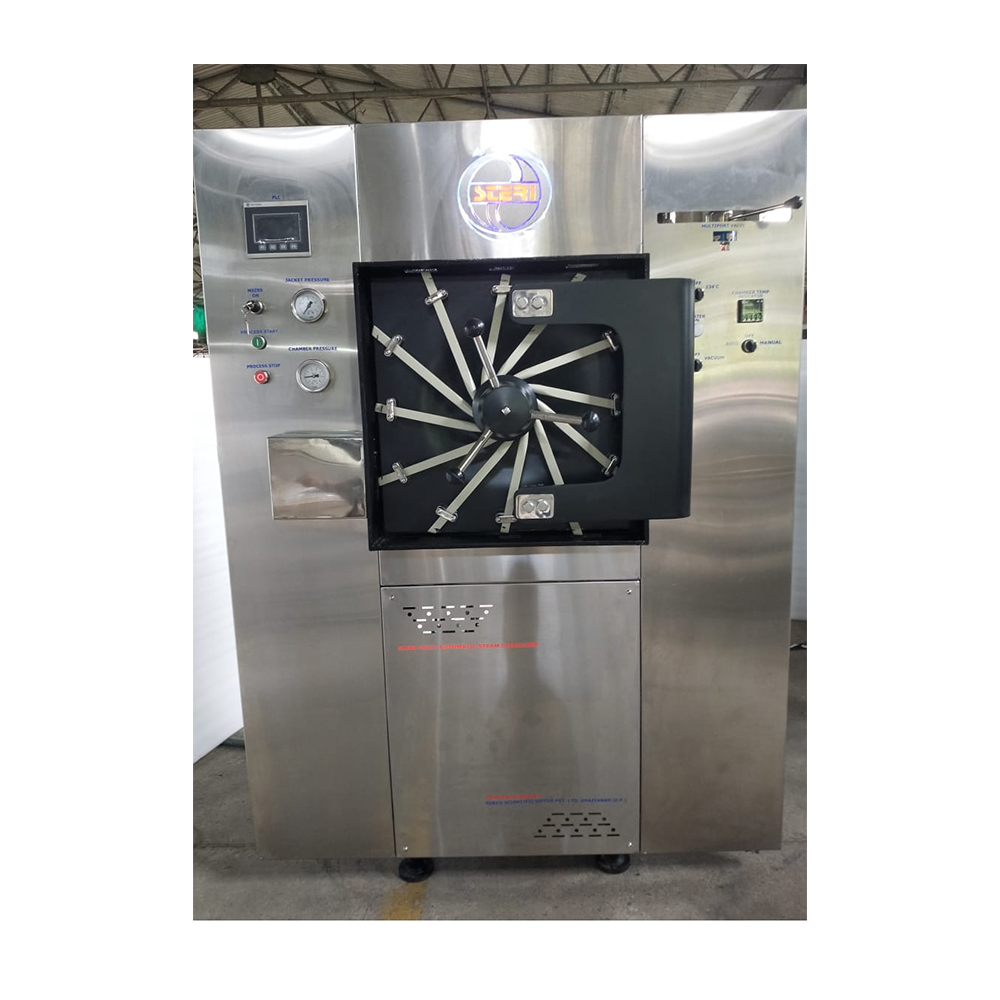

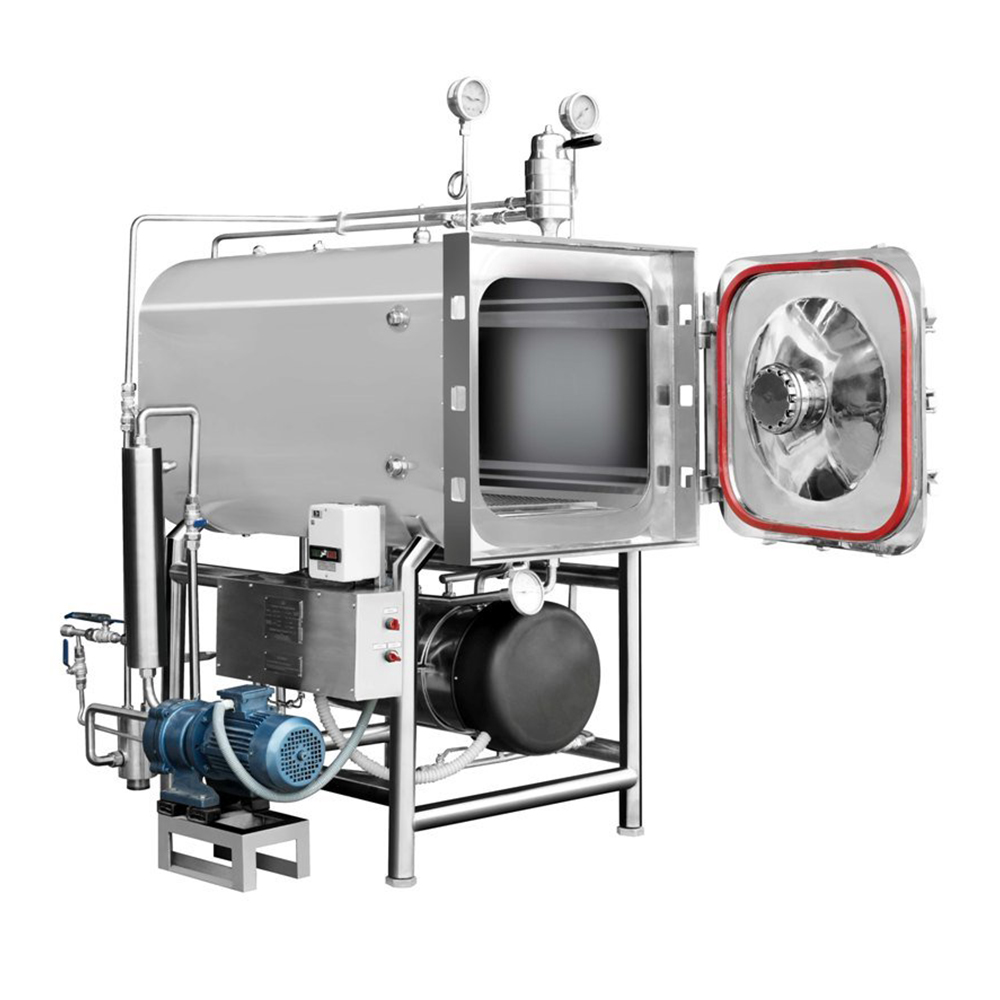

STERI YSU-408 HPHV Semi Automatic Horizontal Rectangular High Pressure High Vacuum Steam Sterilizer

It maintains perfect temperature with its digital temperature controller & alerts the user on completion of sterilization cycle. Our YSU-408 HPHV is designed for high pressure high vacuum sterilization which makes it a viable resource for any medical, veterinary, pharmaceutical labs and Dental clinics.

Quick inquiry

Feature
Technical Specs

STERI YSU-408 HPHV Semi Automatic Horizontal Rectangular High Pressure High Vacuum Steam Sterilizer confirming to IS: 3829 part I is our rectangular semi-automatic sterilizer mounted horizontally on a sturdy stand.

Safe and Reliable

Design Feature

Low total cost of ownership

Complete Stainless-Steel Construction

PLUG and PLAY

Accessories

Size(mm) Size(mm) Size(mm) Size(mm) Size(mm) Size(mm)
Chamber Size 450x450x900 450x450x1200 600x600x900 600x600x1200
600x600x1500
600x900x1500
Outer Dimension 800x1800x1100 800x1800x1600 900x1880x1450 900x1880x1750 1020x2000x1660 1180x2100x1850
Volume litre 182 243 324 432 540 810
Operation Mode Automatic Automatic Automatic Automatic Automatic Automatic
Sterilization Temp. Range 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC
Sterilization Pressure Range Max. 1.2 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm²
Standard Lid lock Mechanism Radial Lock Radial Lock Radial Lock Radial Lock Radial Lock Radial Lock
Heater Load 12 KW 18 KW 18 KW 18 KW 18 KW 18 KW
Stainless Steel Grade SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI)
Voltage & Frequency 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase
