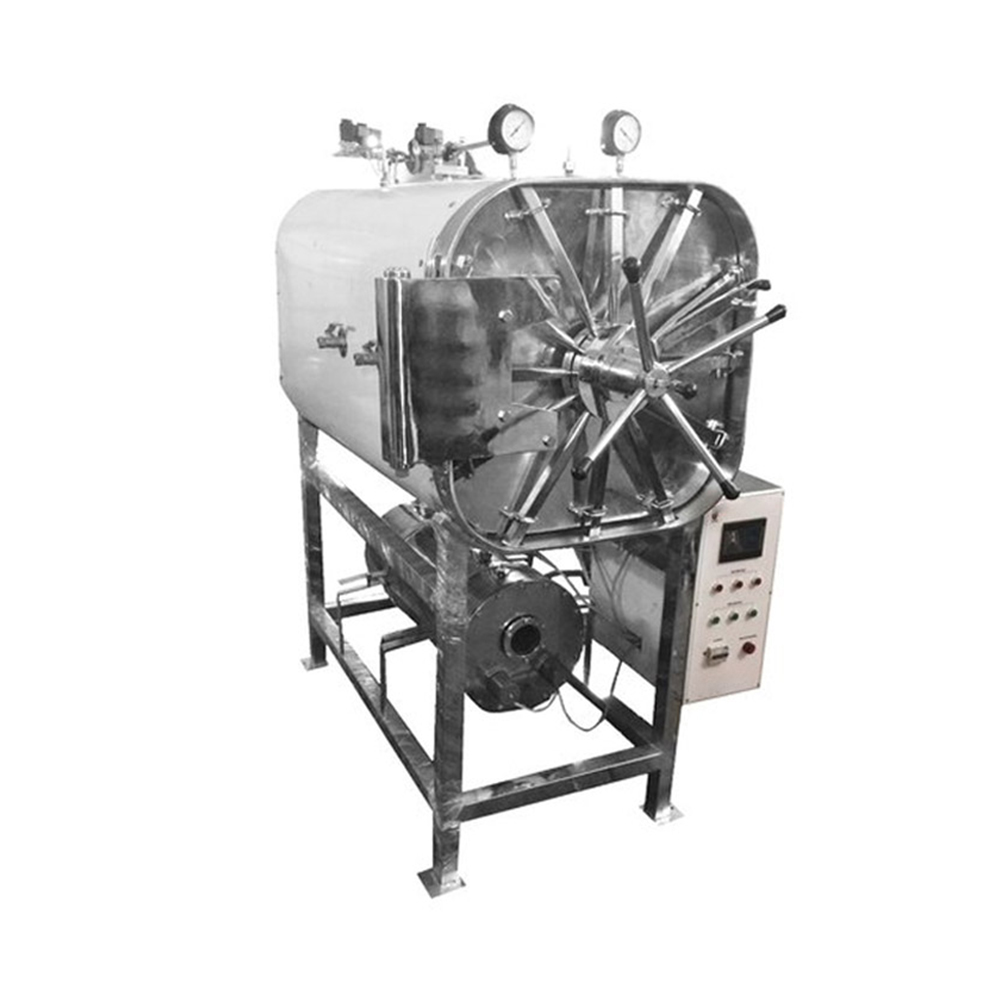

STERI YSU-408 Silver Automatic Horizontal Rectangular High Pressure Steam Sterilizer

It comes with a microprocessor able to maintain the temperature and pressure and on completion performs automatic exhaust. Available with 1 preset cycle, just simply load it, set it and forget it. This competent device enhances productivity of any medical, veterinary, pharmaceutical labs and Dental clinics.

Quick inquiry

Feature
Sterilization Programs
Technical Specs

STERI YSU-408 Silver Automatic Horizontal Rectangular High Pressure Steam Sterilizer confirming to IS: 3829 part I is our rectangular automatic sterilizer mounted horizontally on a sturdy stand.

Safe Feature

AUTOMATIC SHUT OFF VALVE:

Prevents hazardous leakage of hot steam and boiled water due to breakage of glass tube.

HYDRAULIC TESTING:

Complete sterilizer including chamber, jacket, and piping are hydraulically tested at 2 times the working pressure.

VACUUM BREAKER:

The sterilizer is fitted with vacuum breaker system to prevent collapsing of jacket due to vacuum formed by condensation of steam.

SAFETY VALVE:

The sterilizer is fitted with spring loaded dual safety valves.

AUTOMATIC MECHANICAL DOOR LOCKING SYSTEM:

The sterilizer is equipped with automatic mechanical door locking system which must not allow user to open the door until the atmospheric pressure is achieved inside the chamber.

INSULATION:

The sterilizer is completely insulated to prevent any burns caused due to accidental contact to sterilizer body.

Design Feature

Low total cost of ownership

Complete Stainless-Steel Construction

PLUG and PLAY

Accessories

The sterilizer is equipped one pre-programmed customer Flexible cycle - 121°C / 134°C

Size(mm) Size(mm) Size(mm) Size(mm) Size(mm) Size(mm)
Chamber Size 450x450x900 450x450x1200 600x600x900 600x600x1200
600x600x1500
600x900x1500
Outer Dimension 800x1800x1100 800x1800x1600 900x1880x1450 900x1880x1750 1020x2000x1660 1180x2100x1850
Volume litre 182 243 324 432 540 810
Operation Mode Automatic Automatic Automatic Automatic Automatic Automatic
Sterilization Temp. Range 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC 121ºC to 134ºC
Sterilization Pressure Range Max. 1.2 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm² Max. 2.1 kg/cm²
Standard Lid lock Mechanism Radial Lock Radial Lock Radial Lock Radial Lock Radial Lock Radial Lock
Heater Load 12 KW 18 KW 18 KW 18 KW 18 KW 18 KW
Stainless Steel Grade SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI) SS304 (Also available in SS316 SS316L/316TI)
Voltage & Frequency 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase 220 V, 50 HZ Three phase
